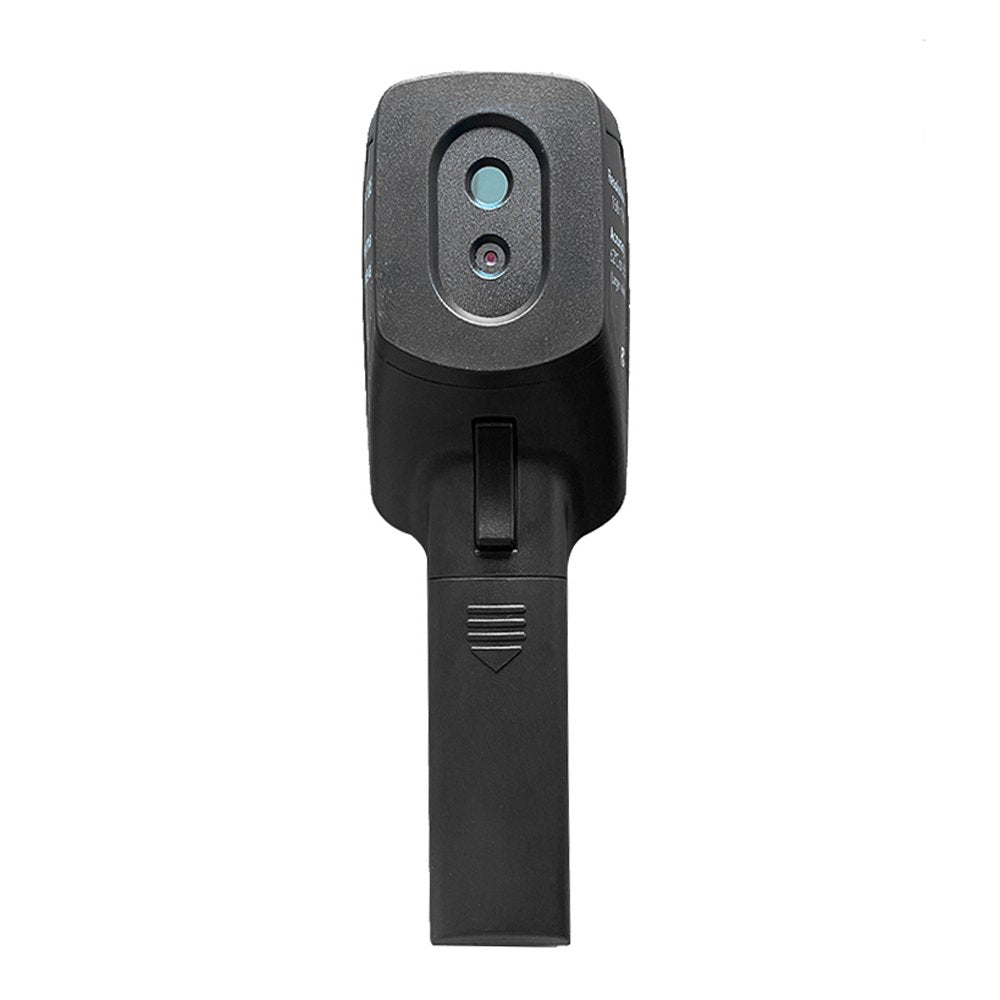

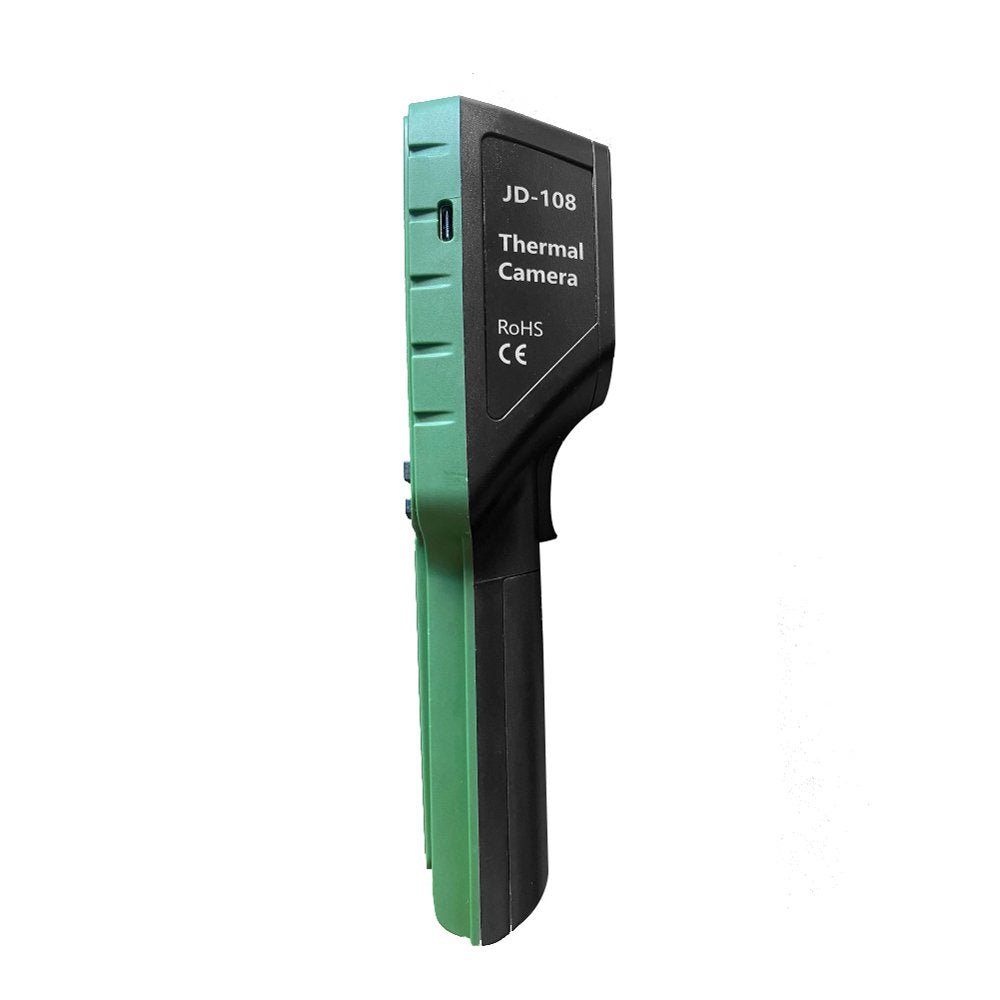

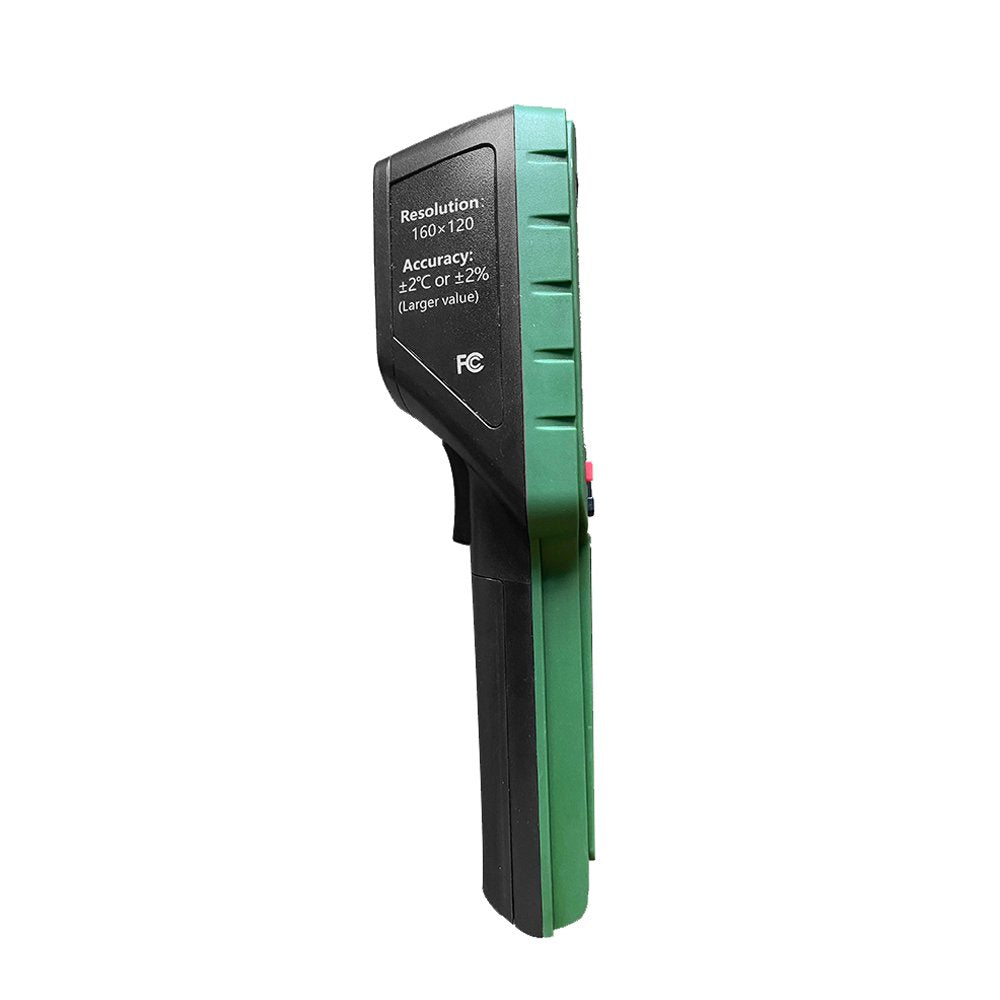

Docooler JD-108 160*120 Infrared Thermal Imager Portable Color Digital Display Heating Detector Handheld Temperature Imaging Camera
Docooler JD-108 160*120 Infrared Thermal Imager Portable Color Digital Display Heating Detector Handheld Temperature Imaging Camera
and inspect, handheld, industrial & scientific, infrared thermal imager, measure, portable color display, real-time thermal images, surface measurement, temperature & humidity, temperature imaging camera
Couldn't load pickup availability

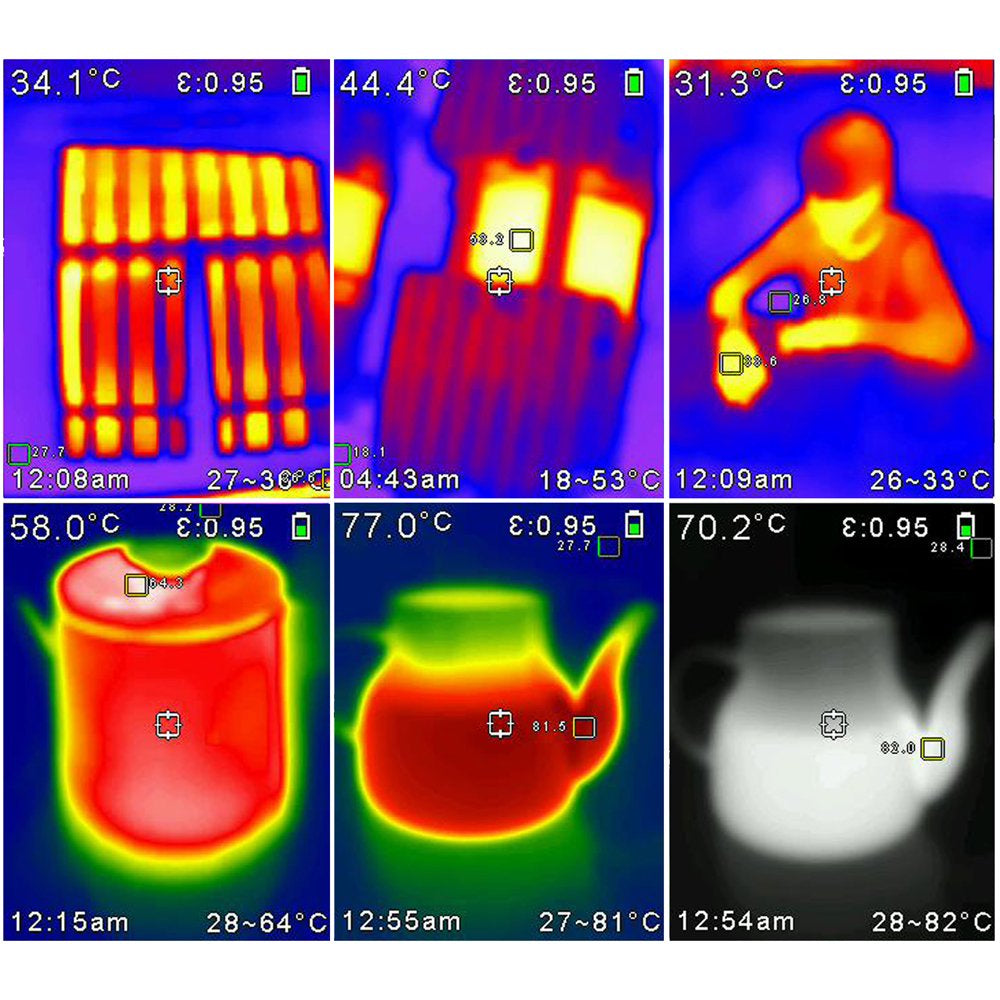

Please note, this item ships from an international seller. Expected delivery is 10-15 days. This product is a hand-held infrared thermal imager, which can realize the combination of surface temperature measurement and real-time thermal images. It can take photos, record videos, and record data. Potential problems can be clearly displayed on the color display screen, which helps users to quickly and accurately locate the center point to measure the cursor and measure the temperature. To increase identification, the images can be mixed from a full thermal images to a full visual images.
Features:

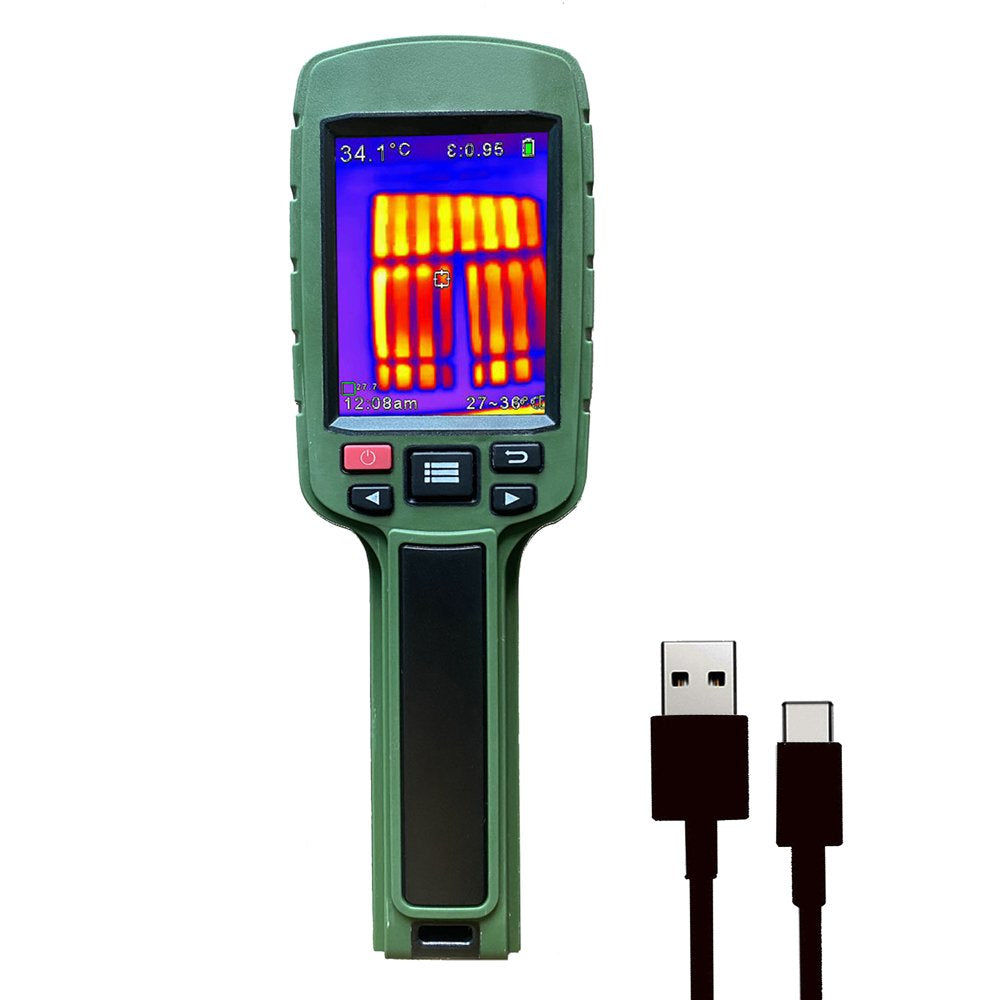

You can use the USB cable to connect to the computers to view or delete the required information.
Suitable for both human temperature detection and industry temperature detection.

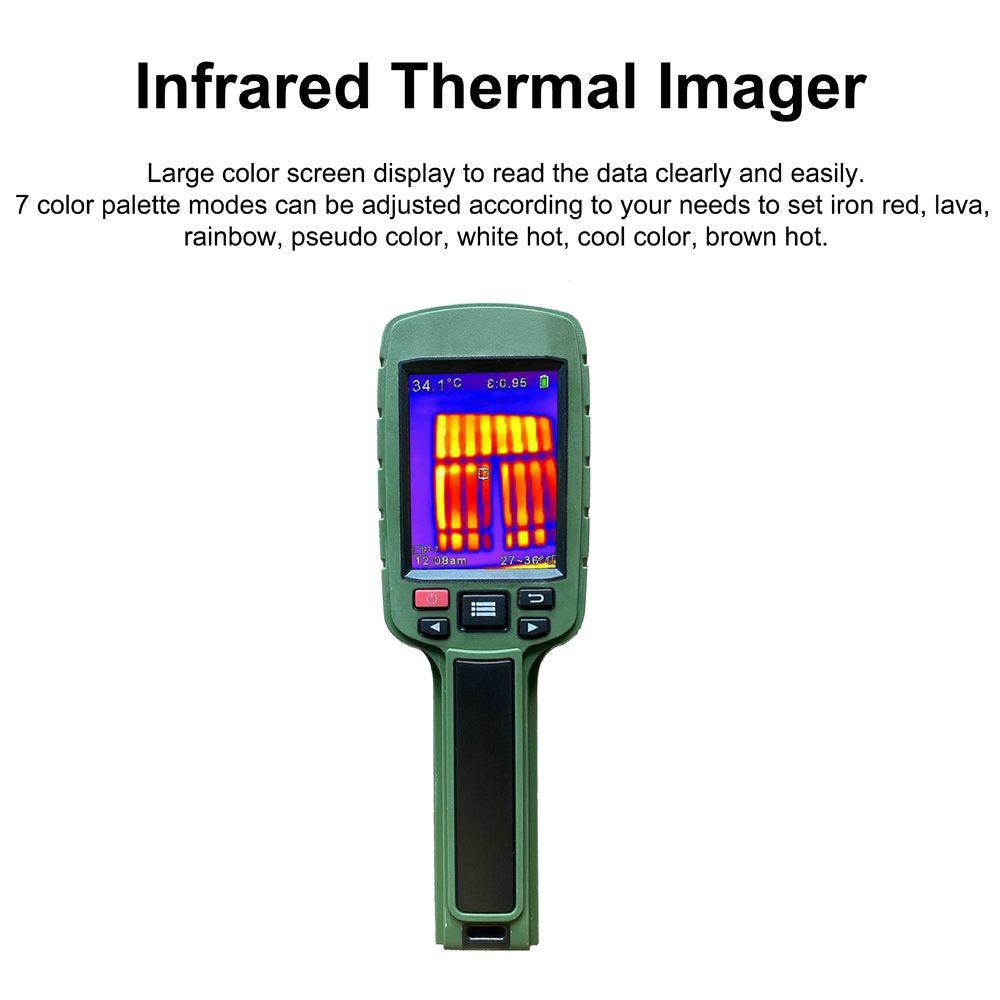

Large color screen display to read the data clearly and easily.
7 color palette modes can be adjusted according to your needs to set iron red, lava, rainbow, pseudo color, white hot, cool color, brown hot.
Can take photos, video, record/delete data.
The maximum/minimum alarm temperature can be set. When the temperature is lower than the minimum temperature you set or higher than the maximum temperature you set, the alarm will sound.
Temperature unit can be switched: ℃ or ℉.
The screen brightness is adjustable.
The default shutdown time is 5 minutes. You can select 5 minutes, 10 minutes, or 25 minutes.
Specifications:
Screen size: 2.8in
Infrared resolution: 160*120
Response band: 8um-14um
NETD: <50mk
Horizontal FOV Angle: 50°
Output frame rate: 25Hz
Visible light resolution: 2 million pixels
Temperature measurement : -20°C to 400°C
Temperature measurement accuracy: ±2℃ or ±2% (take the maximum value)
The emissivity: adjustable from 0.1 to 0.99
Memory card: 8GB
Images format: JPG
Video format: AVI
Operating temperature: 0°C to 40°C
Storage temperature: -10°C to 60°C
Storage humidity: 10%-85% RH
Battery: 3.7V, 2000mA

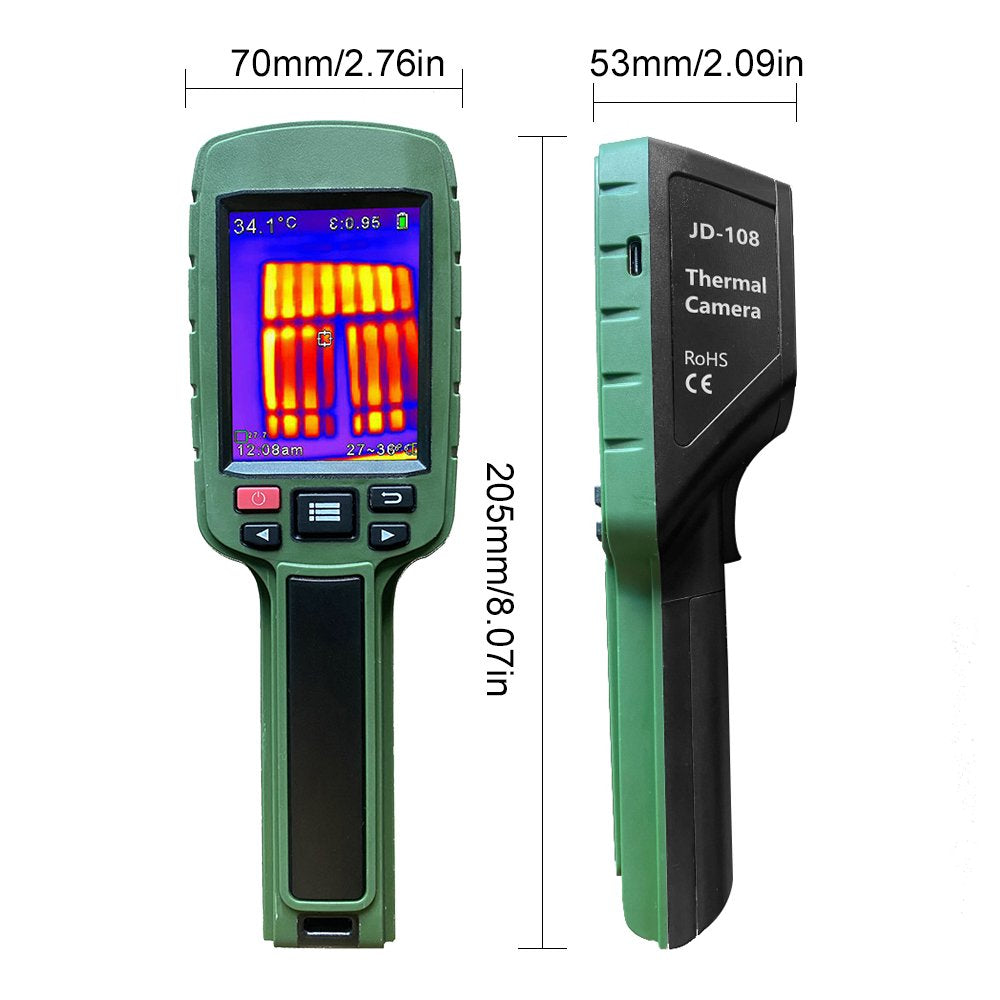

Item size: 205 * 70 * 53mm / 8.07 * 2.76 * 2.09in
Item weight: 574g / 1.27lb
Package size: 247 * 137 * 75mm / 9.72 * 5.39 * 2.95in
Package weight: 865g / 1.91lb
Packing List:
1 * Infrared Thermal Imager
- You can use the USB cable to connect to the computers to view or delete the required information.
- Suitable for both human temperature detection and industry temperature detection.
- Large color screen display to read the data clearly and easily.
- 7 color palette modes can be adjusted according to your needs to set iron red, lava, rainbow, pseudo color, white hot, cool color, brown hot.
- Can take photos, video, record/delete data.
Product Dimensions:
