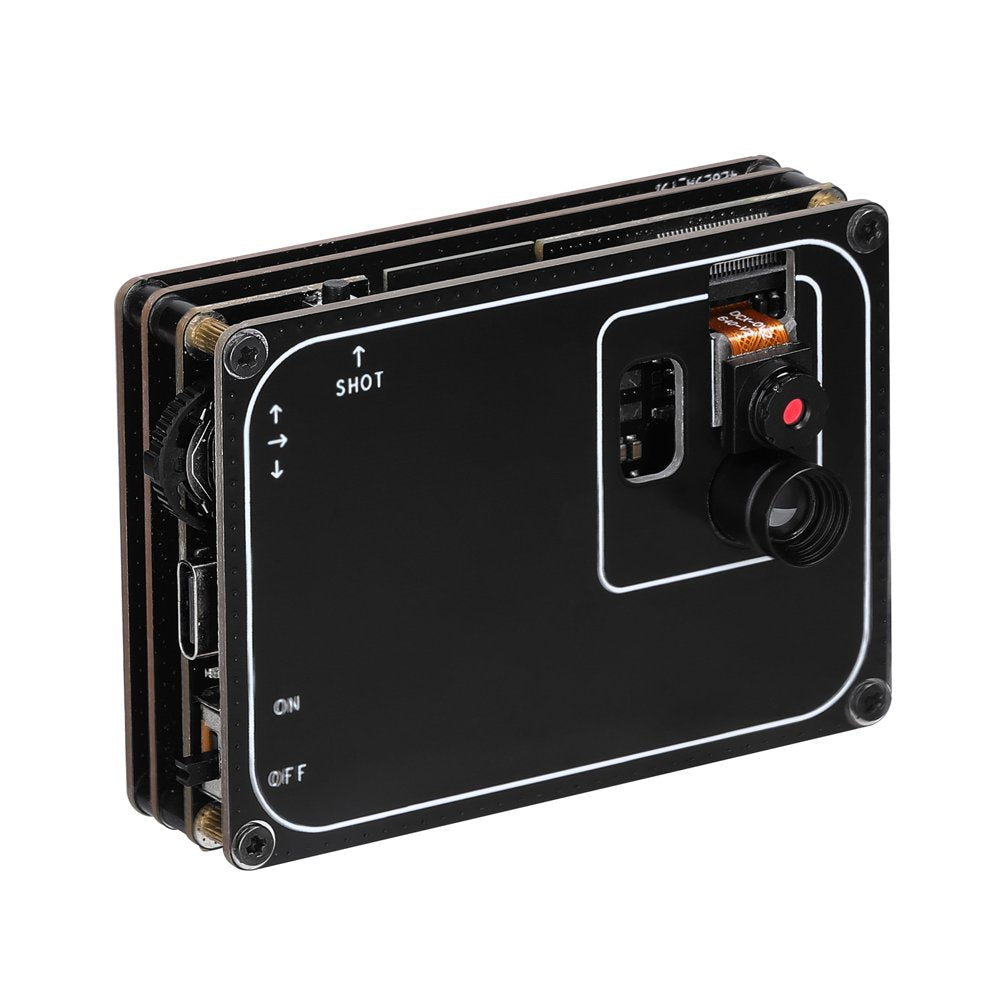

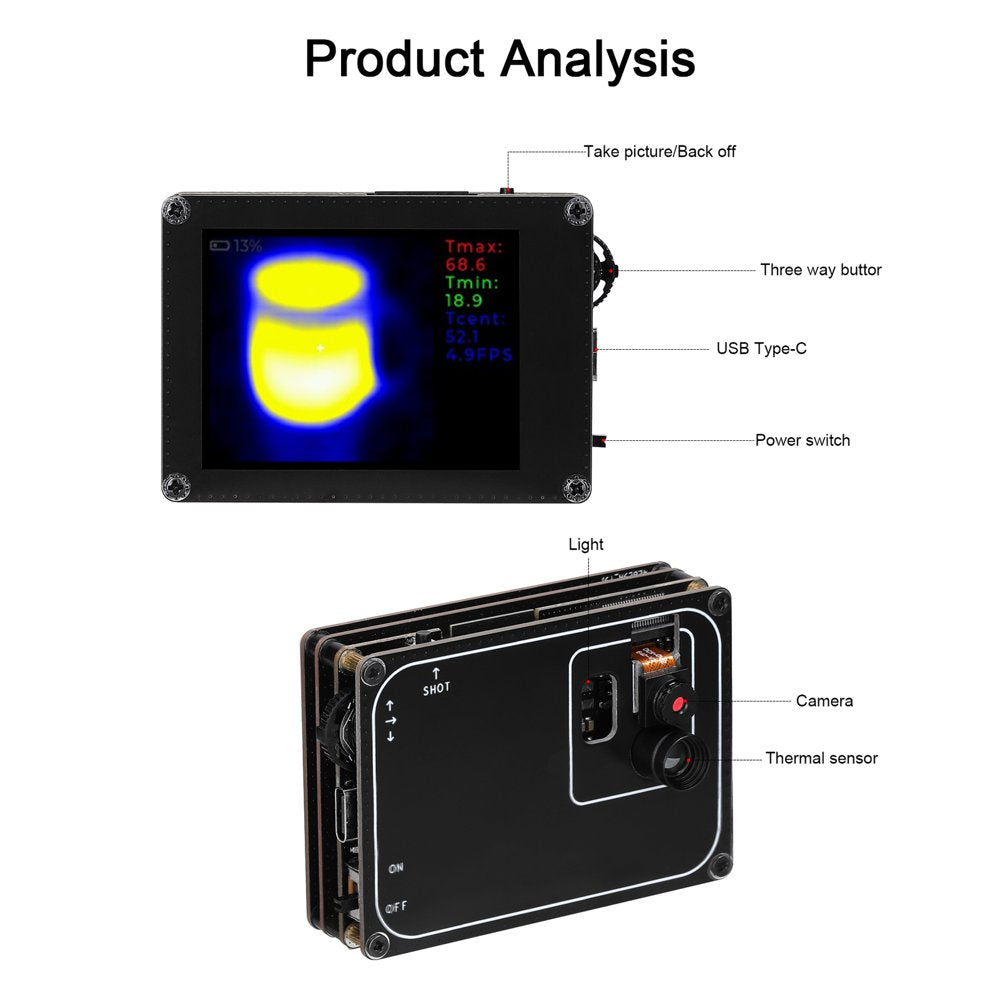

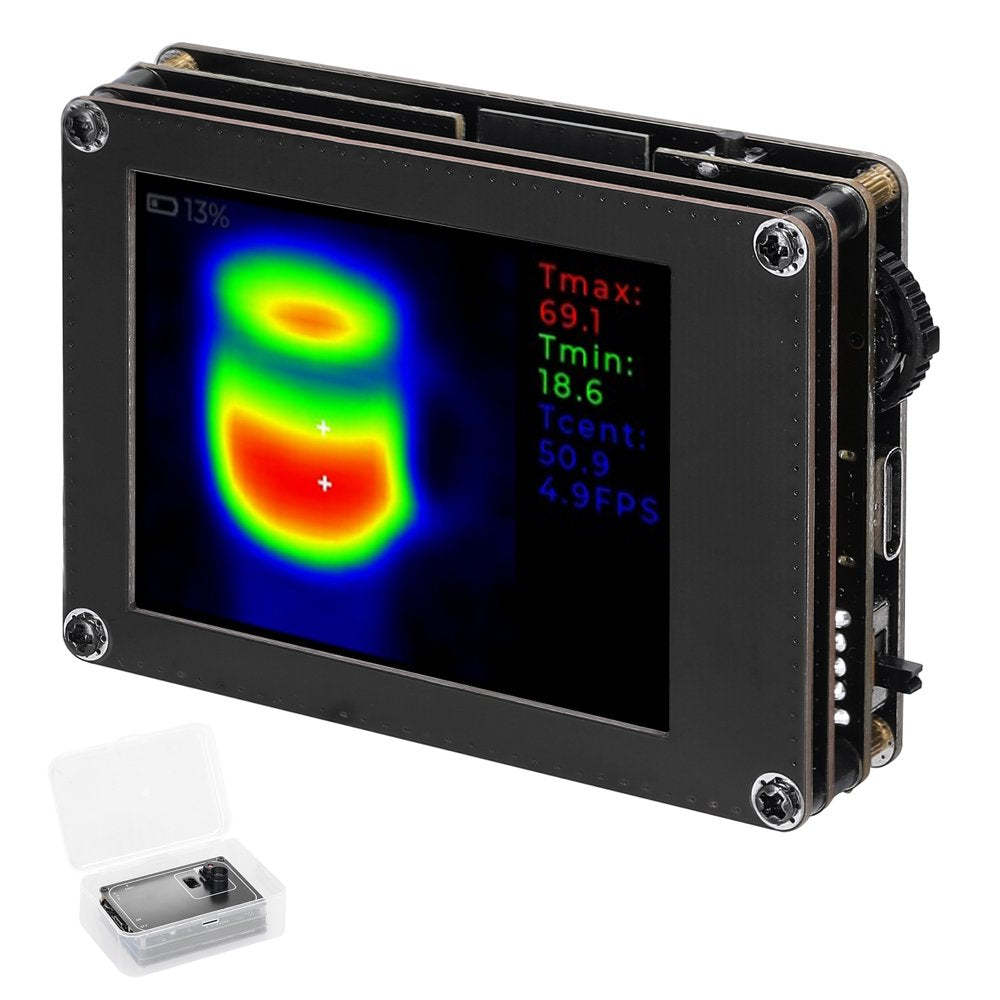

TICAM1 is a dual-lens thermal imager with a thermal imaging sensor and a visible camera. It supports four display modes of Infrared Only, Camera Only, Infrared Refer and Merge; six-color panels; picture saving and U-disk functions. Supports WiFi connection and allows you to view infrared and visible camera videos and save screenshots over a LAN via a browser. merge mode is also known as Dual Light (thermal imaging and visible light) Fusions mode, this mode can be used to view hot spots very clearly and can be widely used in various applications such as equipment maintenances and underfloor heating repairs.

Features:
【High Resolution】: A visible light camera with 2 MP pixels is available. In Infrared refer, Merge mode, resolution is 320*240. When using WIFI function to to computers, user can switch to different resolution in menu when viewing screen, to 200MP.

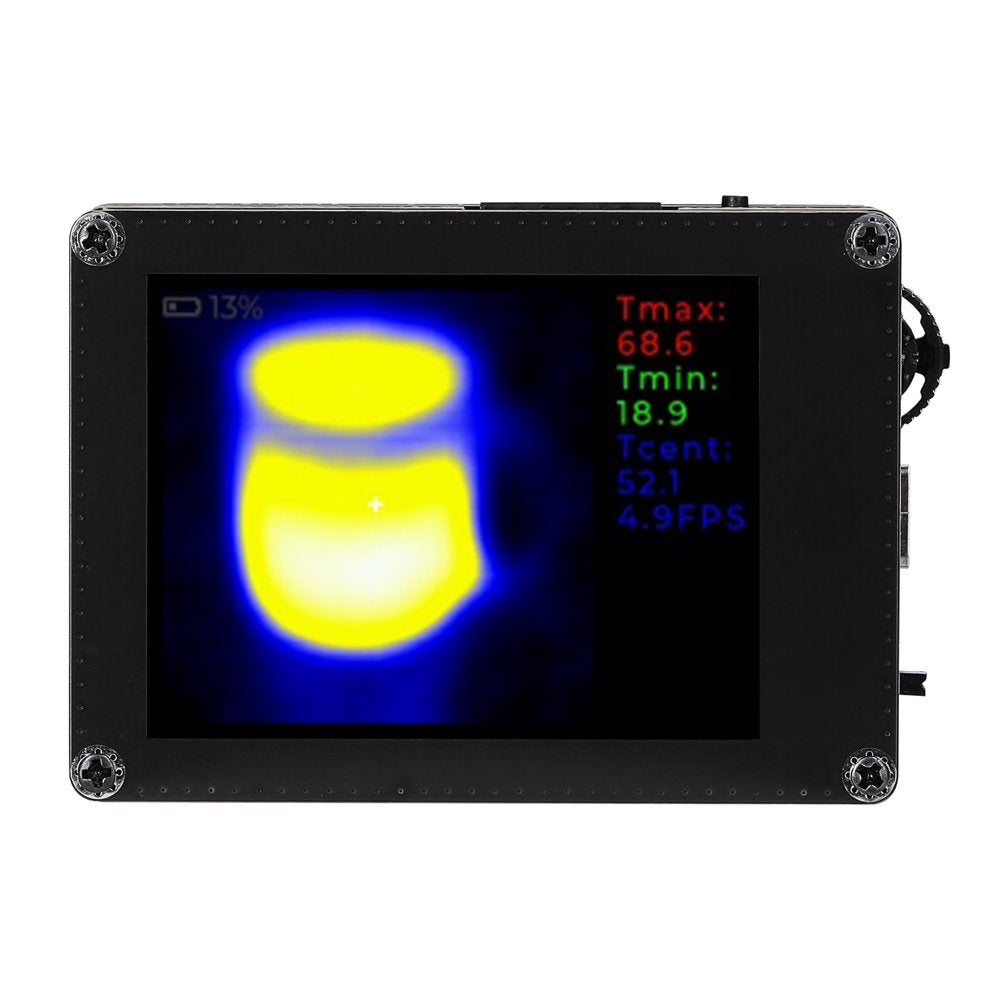

【TFT Display】: Adopts 2.4inch TFT display with 320*240 resolution, automatic capture of maximum and minimum temperature, centre temperature.

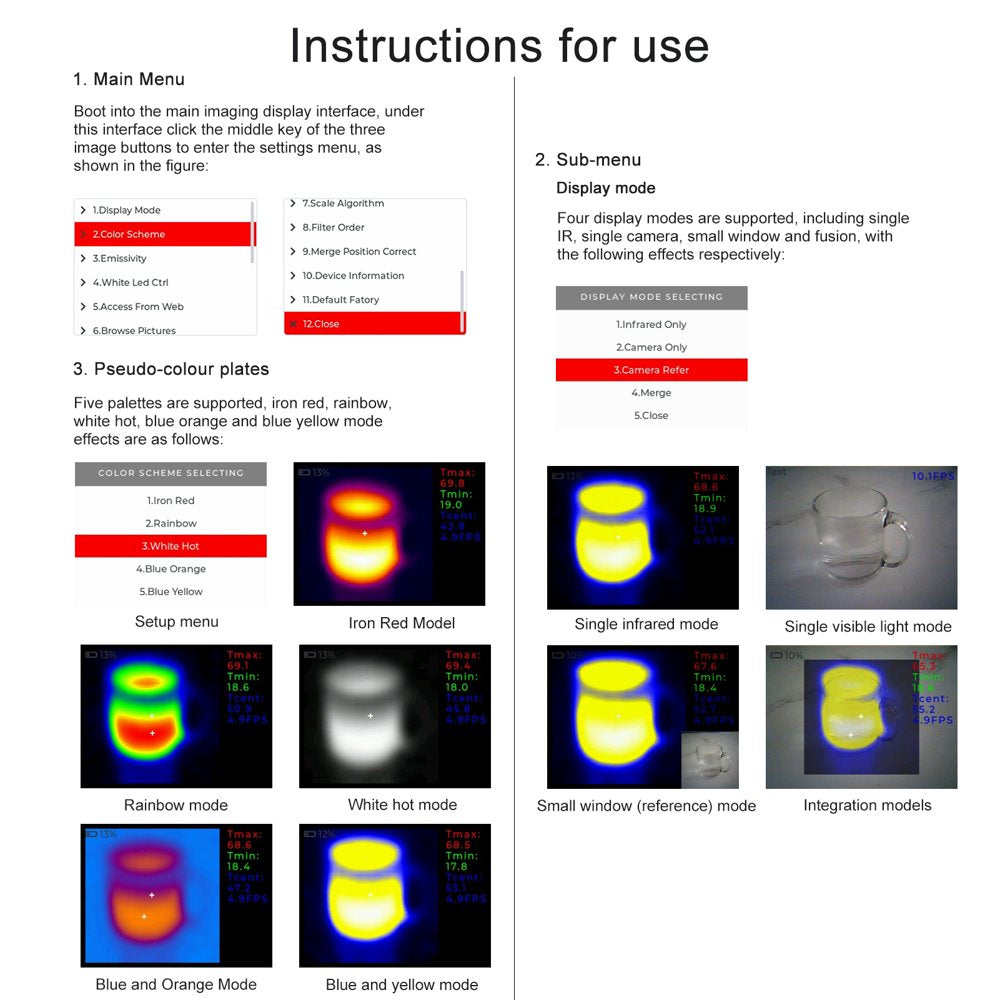

【Four Display Modes】: Including Infrared only, camera only, Infrared refer and Merge modes, ALL are supported.

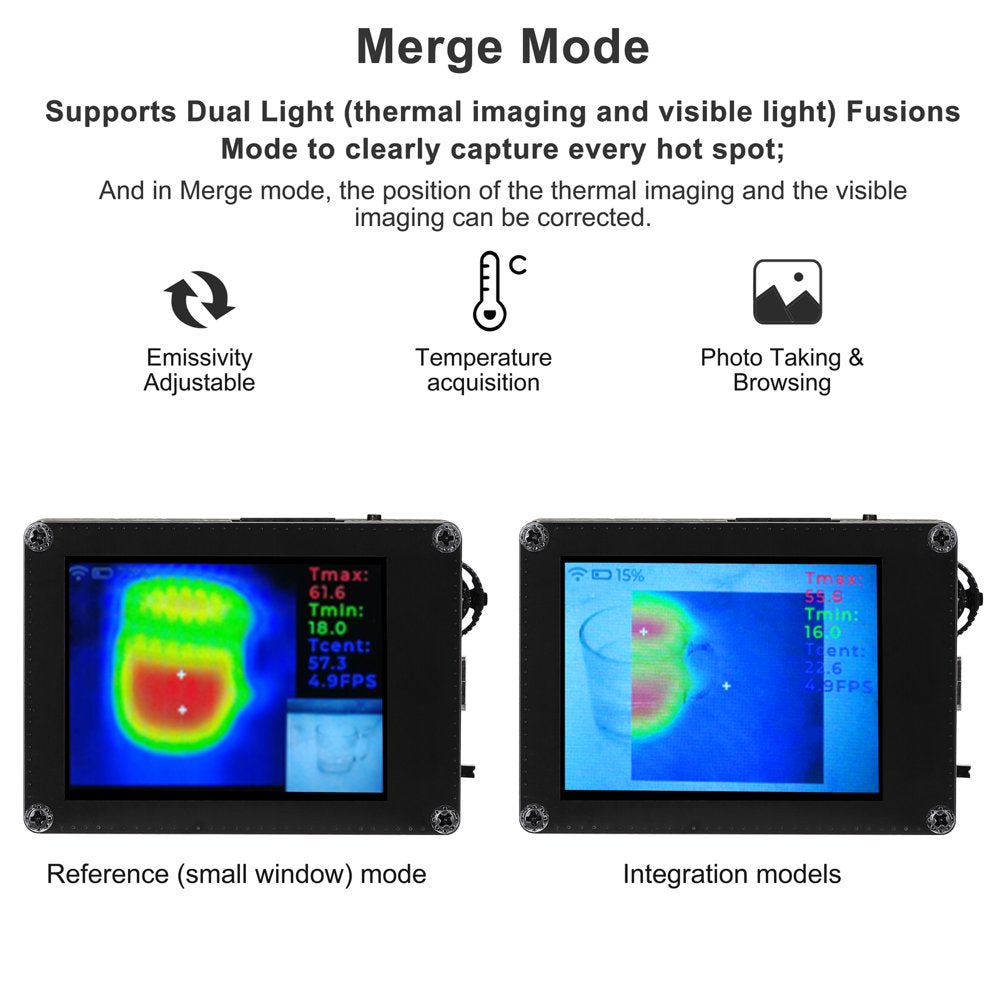

【Merge Mode】: Supports Dual Light (thermal imaging and visible light) Fusions Mode to clearly capture every hot ; And in Merge mode, position of thermal imaging and visible imaging can be corrected.
【Emissivity Adjustable】: Emissivity adjustable to measure different objects (High sensitivity, emissivity adjustable. Can be adjusted to meet temperature measurement of different materials.).
【Photo Taking & Browsing】: Support for picture taking and local storage, browsing, or viewing via a data cable connected to computers.
【Wifi Function】: Support for WIFI Access Point mapping function, connecting to computers or mobilephones or other devices via WiFi network and viewing local imagings via computers/ mobilephones or other devices. ability to view real-time video footage via WiFi as well, enabling real-time monitoring. Support for firmware upgrades.
【LED Light】: Built-in bright LED light, long press on rotation wheel to turn on torch.
【Other Professional Functions】: Filter order setting, imaging display algorithm setting, etc.
【Long Endurance】: Built-in 1200mAH battery, screen can be used for more than 4 hours with constant light, if it is accessed through network, screen will automatically rest to save power.

Specifications:
Name: Thermal Imager
Material: printed circuit board
Battery: 1 * built-in 1200mAh battery (included)
Infrared resolution: 32 * 32
IR FOV: 33° * 33°
Visible lens: 200 MP, supports to UXGA (1632*1232)
Interface: Type-C
Storage capacity: 1.5M Byte, can store more than 50 screenshots in JPEG format
Maximum frame rate: 5.3FPS
Number of color plates: 5 types
Temperature measurement accuracy: ±3°C
Temperature measurement ranges: -20~1000℃
Operating temperature: 15-45°C
Storage temperature: 0~60℃
Item size: 75 * 51 * 27mm / 2.95 * 2.01 * 1.06in
Item weight: 75g / 2.65ounce
Package size: 80 * 50 * 30mm / 3.15 * 1.97 * 1.18in
Package weight: 115g / 4.06ounce

Packing List:
1 * Thermal Imager

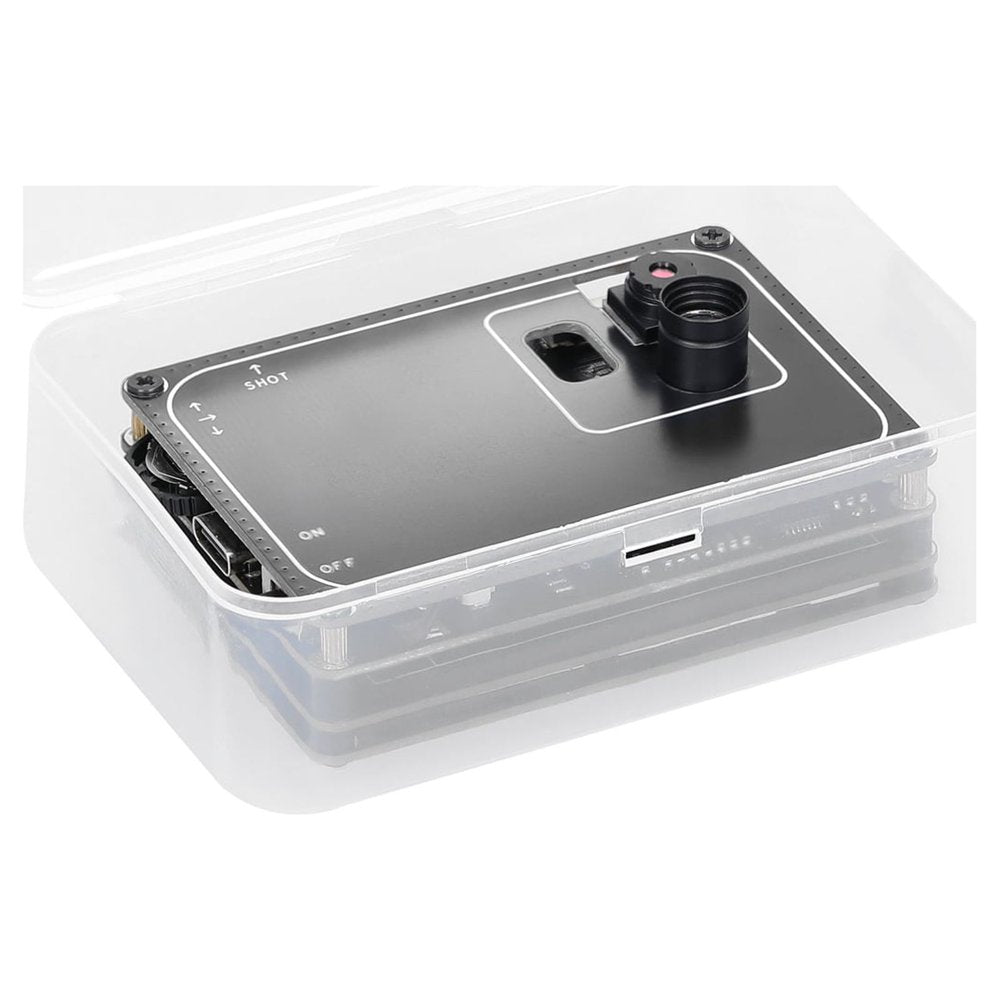

1 * Storage Box
