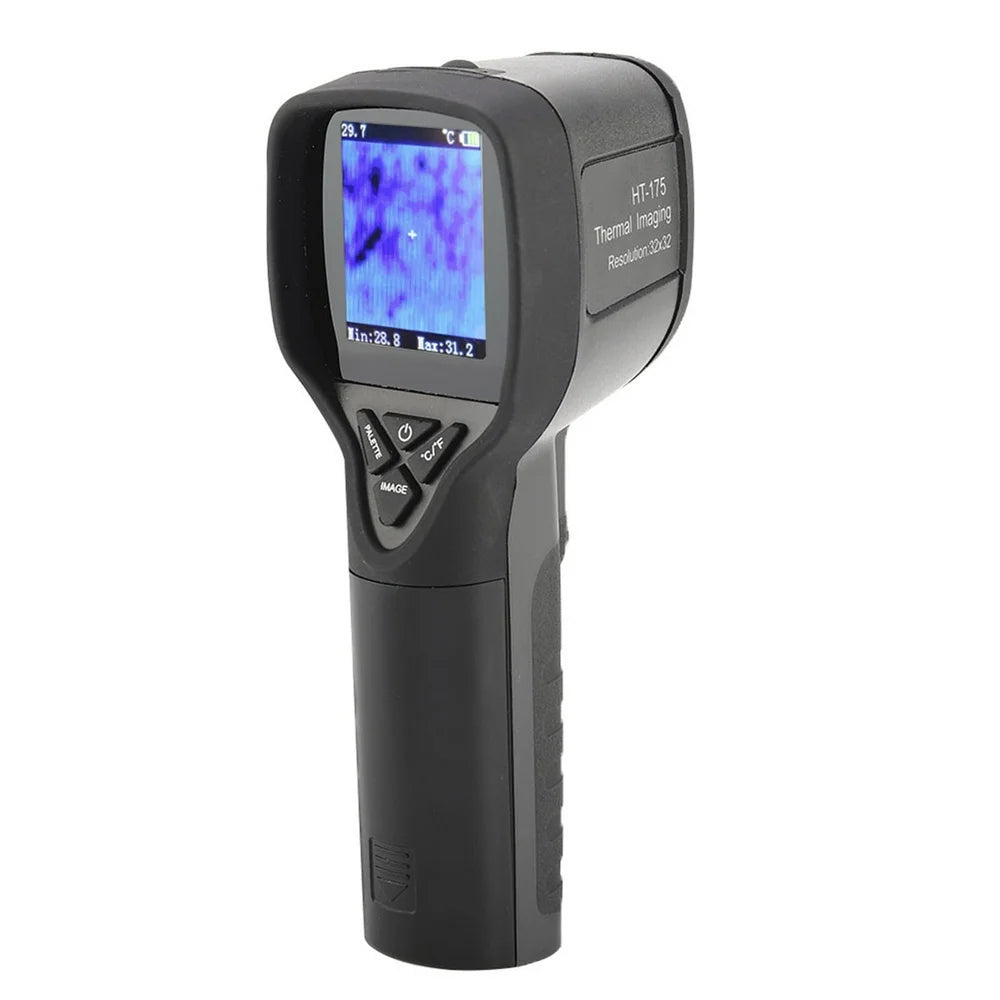

Black Thermal Imaging Camera, Infrared Camera, HT-175 for Agriculture for
Specification:
Features:
The instrument measures the infrared difference between the object itself and the background and obtains different images and converts it into standard video format and display. The industrial thermal camera features portable design and simple operation. Wide measuring range, it can measuring temperature between -20?C and 300?C. It is widely used in many fields such as , archaeology, traffic, agriculture, geology, energy, smelting, electronic manufacture, etc. It is the ideal selection for electrician and maintenance personnel and technicians and can be used to find the problem area quickly.
Specification:
Plug type: EU Plug, US Plug (optional)
Display: 2.0 color screen
Measuring range: -20 ?C ~ 300 ?C
Measurement accuracy: ?2%/?2?C
Field of view: 33?x33?
Focusing mode: Fixed
Frame rate: 5Hz ~ 6Hz
Wavelength range: 8-14um
Infrared image resolution: 32 x 32
Photo resolution: 176x220
Photo format: bmp
Storage space: 16MB
Palette: Iron red, white hot
Battery model: 18500
Working voltage: 3.4 ~ 4.2V
Working temperature: 0 ?C ~ 50 ?C
Storage temperature: -10 ?C ~ 50 ?C
Humidity: <85% RH
Size: Approx. 165 x 69 x 60cm/64.96 x 27.17 x 23.62in
Weight: approx. 540g

Package list:
1 x Thermal Imaging Camera
1 x Adapter
1 x UBS Cable
1 x User Manual

• The instrument measures the infrared difference between the object itself and the background and obtains different images and converts it into standard video format and display.
• The industrial thermal camera features portable design and simple operation.
• Wide measuring range, it can measuring temperature between -20?C and 300?C.
• It is widely used in many fields such as , archaeology, traffic, agriculture, geology, energy, smelting, electronic manufacture, etc.
