Apexeon Thermal Imager, Small Portable Mobilephone Thermal Imaging Camera, 6 Display Modes, Regional Temperature Measurement

Small Thermal Imaging Camera Portable Mobilephone Thermal Imager Support Highest Lowest Centre Point Regional Temperature Measurement 6 Display Modes Chinese and English Language SwitchableThis mobilephone thermal imaging camera uses small pixel , high resolution industrial grade infrared detector, is a high precise and fast response portable infrared thermal imaging analyzer. product is lightweight and portable, plug and play, and can be connected to a mobilephone for infrared imaging of target objects with a customised professional grade thermal analysis APP, and can be used whenever and wherever for multi-mode professional thermal analysis. Note: used after turn on OTG function in settings.

Features:
Parameter Setting: Provide APP interface and parameter setting of infrared thermal imaging camera.
Reset Function: Reset all kinds of information in screen and restore it to state at startup.
Photo Taking: Take photos and store them in an album.
Video Recording: Make a video recording and store it in an album.
Album: Store photos and videos.
Infrared Thermal Imaging: Display infrared thermal imaging.
Temperature Color Bar: Display maximum temperature and minimum temperature in current screen with different color block bars.
Color Palette: Different color palette can be switched to change color of video, with totally 6 color palettes for you to adjust.
Regional Temperature Measurement: Points, lines and boxes can be added to measure temperature in different regions.
Temperature Tracking: current maximum temperature, minimum temperature and center point temperature in screen can be tracked.
Highlight Rectangle Temperature: current temperature in all rectangular boxes can be highlighted. If current screen does not have a rectangle, one will be added automatically.
High Temperature Alarm: high temperature alarm threshold can be set, lf temperature in video exceeds threshold value, a sound and screen alarm will be issued.
Highlight High-temperature Regions: maximum-temperature region in screen can be displayed.

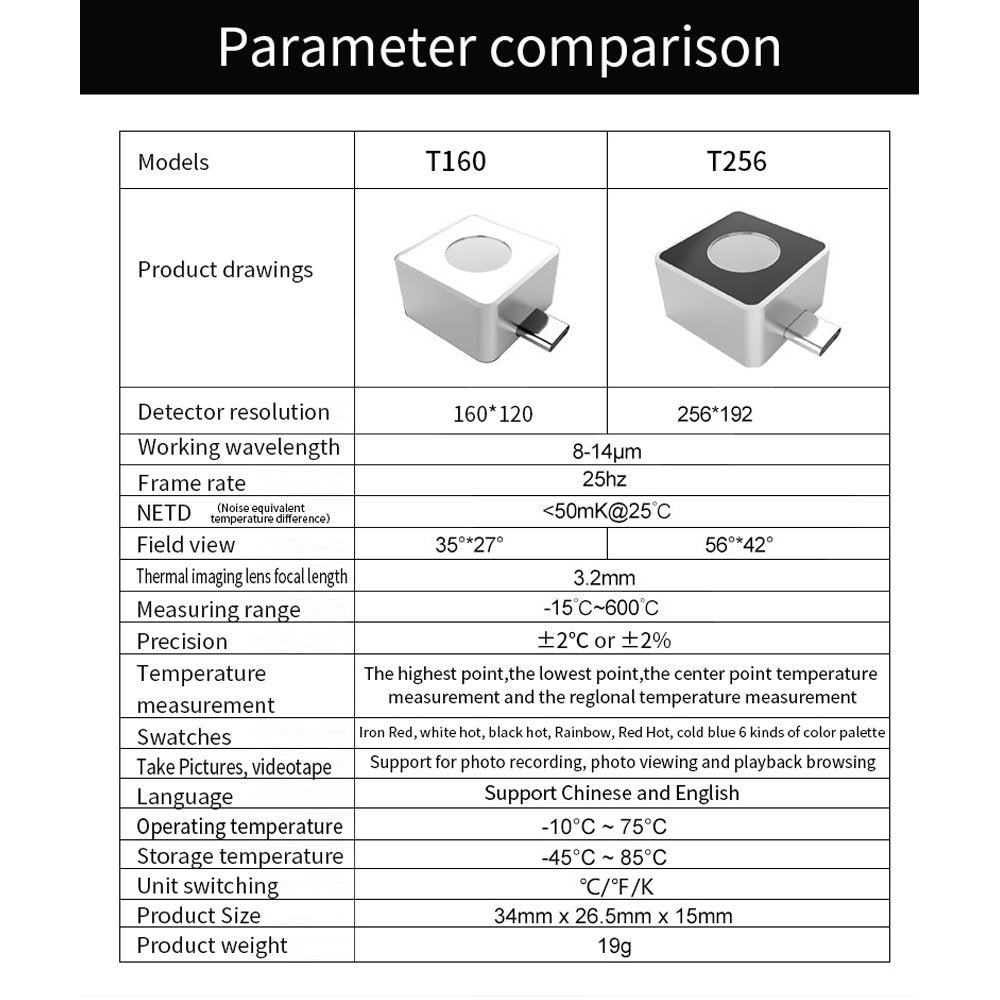

Specifications:
Name: Thermal Imager
Material: plastics

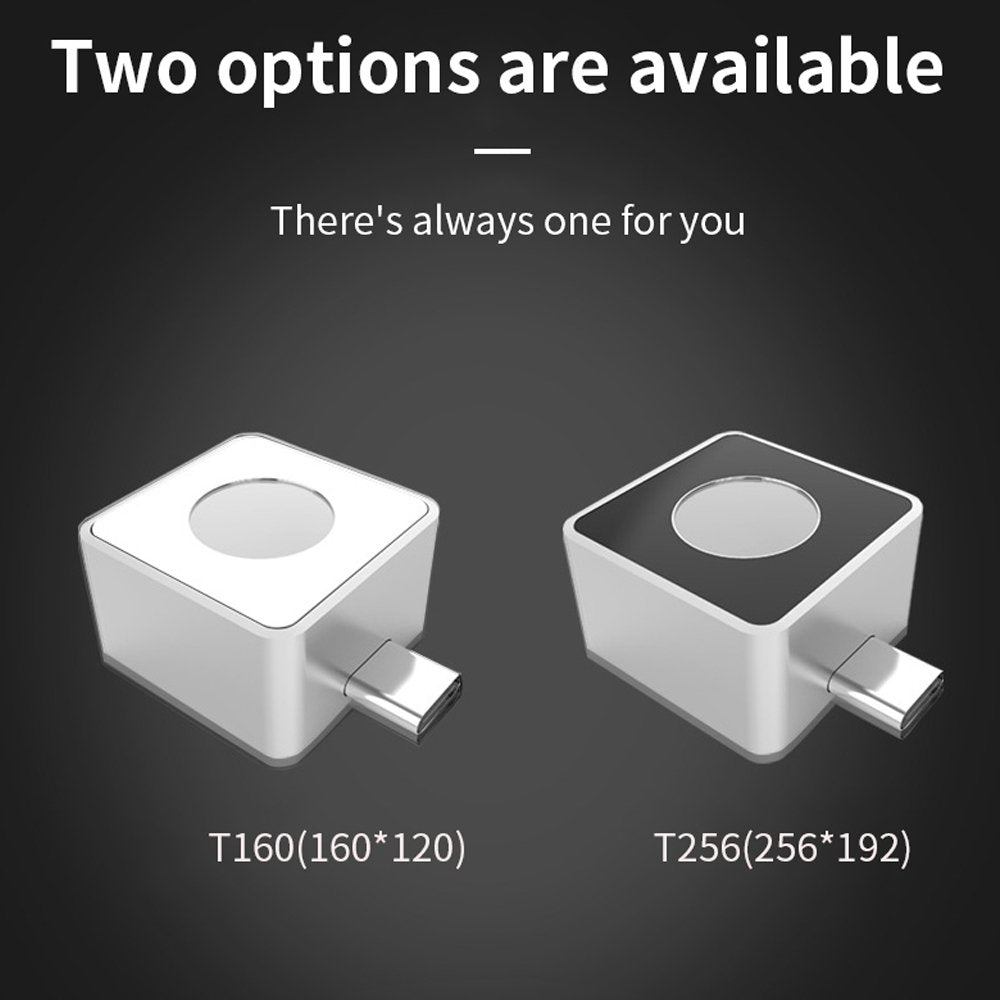

Model: T160, T256 (optional)

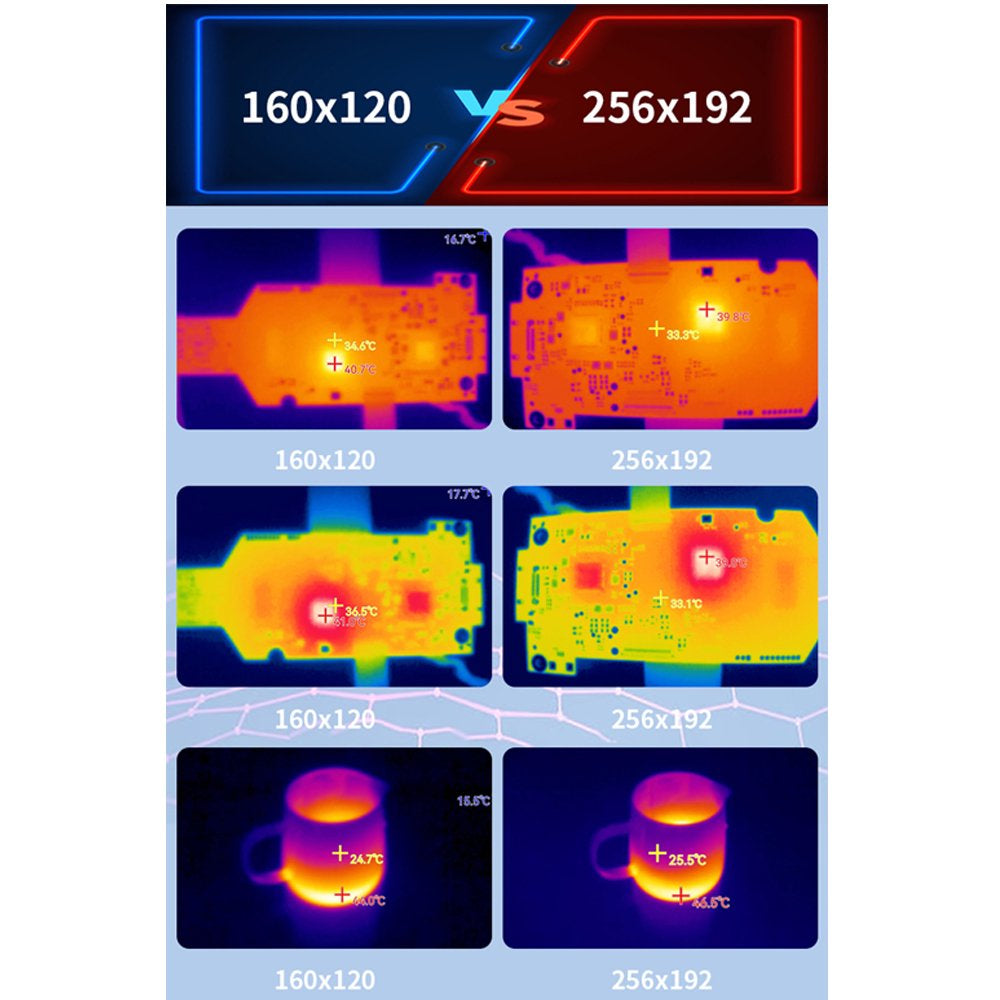

Resolution: 160*120 (T160), 256*192 (T256)
Wavelength: 8-14μm
Frame rate: 25Hz
NETD:<50mK @25℃
FOV: 35°*27° (T160); 56°* 42° (T256)
Lens: 3.2mm
Temperature measurement ranges: -15℃ to 600℃
Temperature measurement accuracy: ±2℃ or ±2% of reading
Temperature measurement: Highest, lowest, central point an area temperature measurement are supported
Color palette: 6
Language: English and Chinese
Working temperature: -10℃ to 75℃
Storage temperature: -45℃ to 85℃
IP rating: IP54
Item size: 34 * 26.5 * 15mm / 1.34 * 1.04 * 0.59in
Package size: 95 * 95 * 50mm / 3.95 * 3.94 * 1.97in
Package weight: 140g / 4.94ounce

Packing List:
1 * Thermal Imager
1 * Lens Cleaning Cloth
1 * Storage Bag
1 * Guideline
