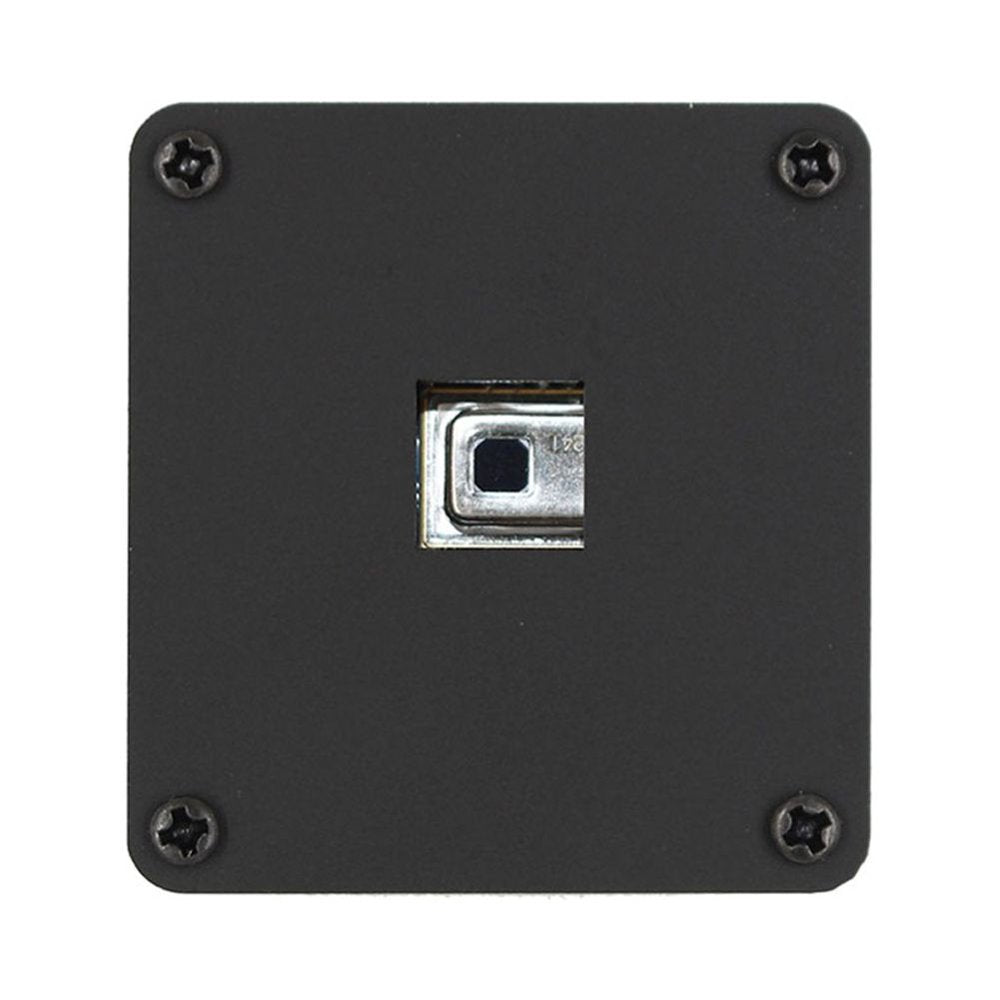

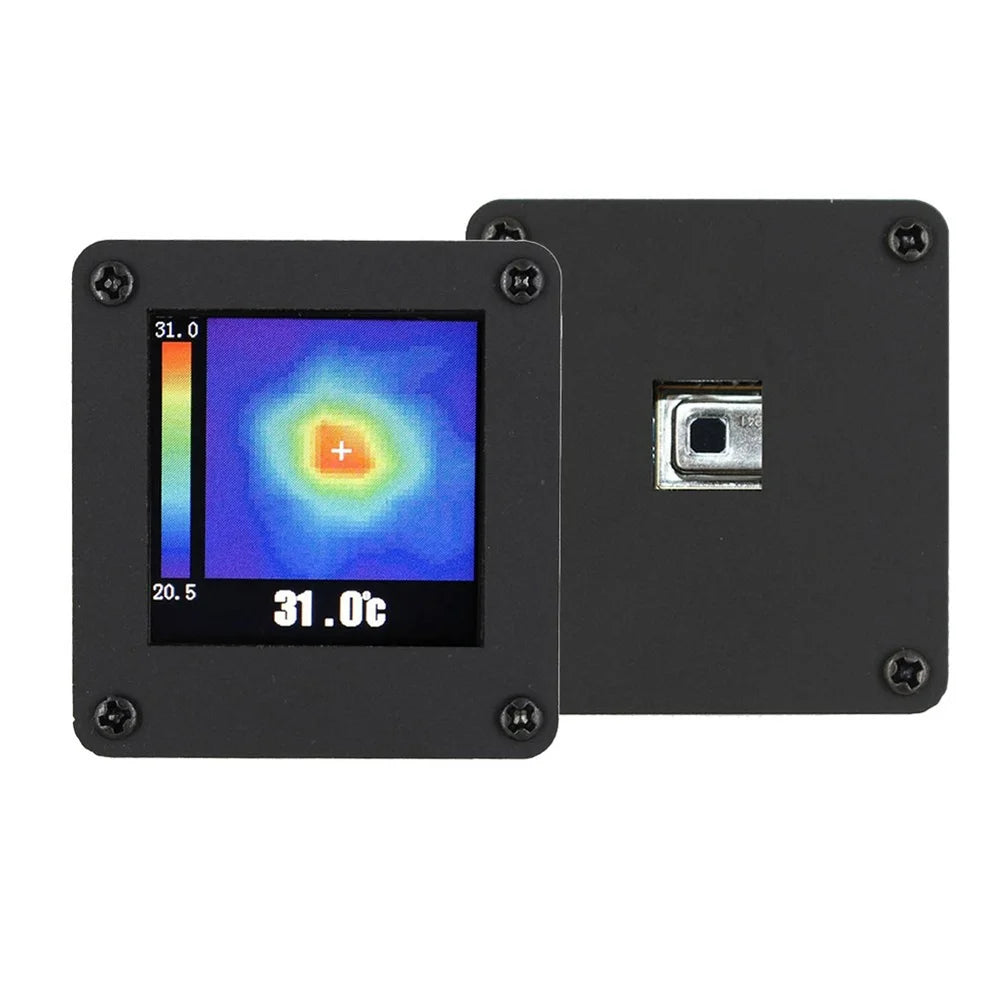

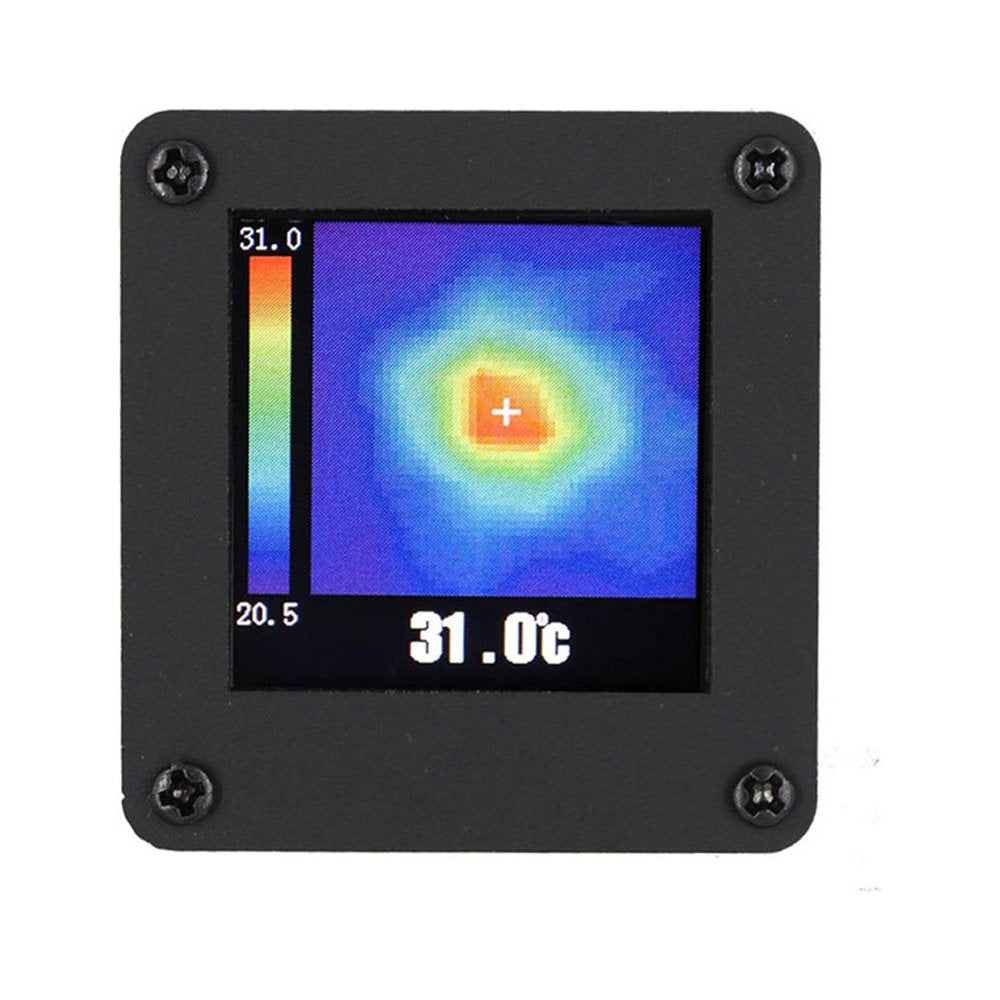

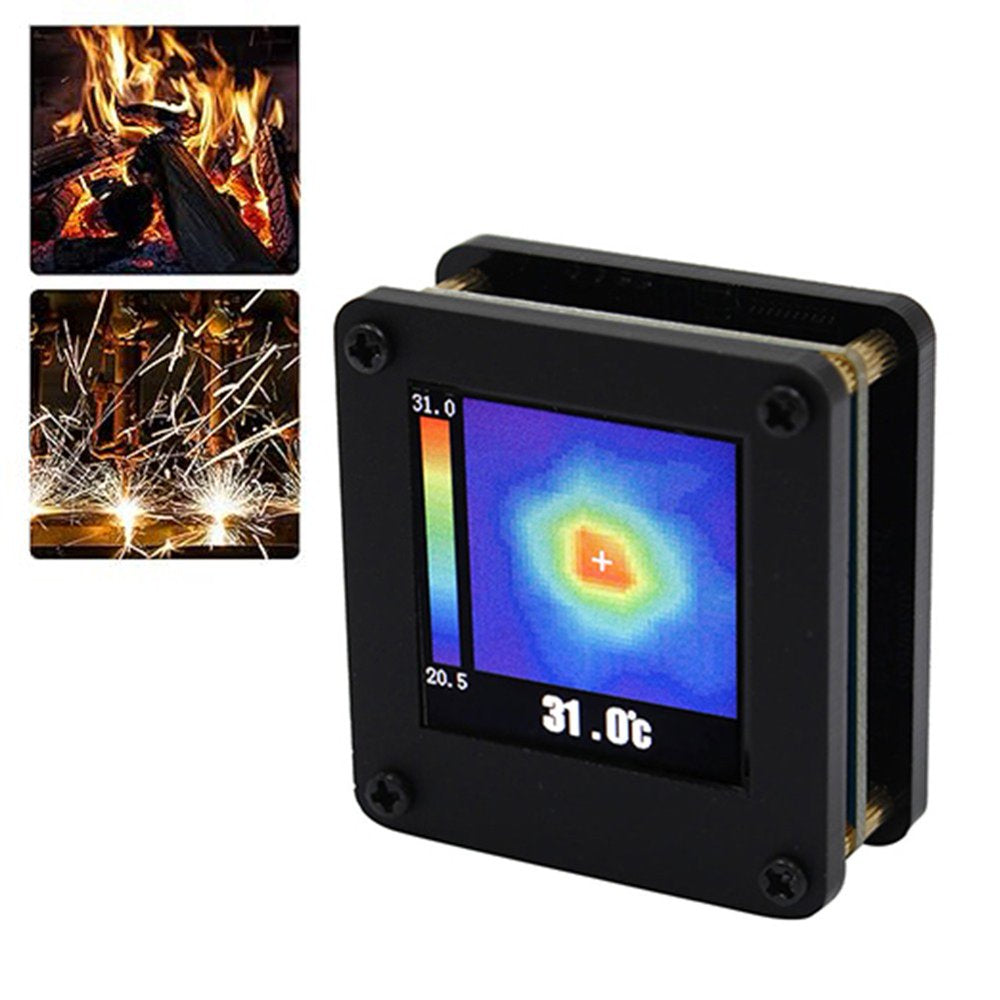

Amg8833 Ir 8*8 Infrared Thermal Imaging Camera Array Temperature Sensor

Features:

*The module can be powered directly by USB 5V to generate infrared images.

*Using AMG8833 infrared thermal sensor. The resolution is 8*8, and the maximum detection distance is 7 meters.

*Can be applied to the inspection of electronic products.

*Portable, compact, high-performance and easy to use.

Specification:

Material: PCB

Temperature accuracy:

High performance type high gain: typical ±2.5℃ ±4.5°F

High performance low gain: typical ±3.0℃ ±5.4°F

Human detection distance: 7m or less (reference value) 22.966 feet

NETD:

Typical value. 0.05℃ 32.900°F 1Hz

Typical value. 0.16℃ 32.288°F 10Hz

Viewing angle: typical 60°

Optical clearance: typical within ±5.6°

Current consumption:

Typical 4.5mA (normal mode)

Typical 0.2mA (sleep mode)

Typical 0.8mA (standby mode)

Creation time:

Typical 50ms (time to enable communication after setup)

Typical 15s (time for stable output after setting)

Number of pixels: 64 (vertical 8 * horizontal 8 for Matrix)

External interface: 1²C (fast mode)

Frame rate: Typical 10 frames/second or 1 frame/second

Working mode: normal, sleep, standby (10 seconds or 60 seconds interval)

Output mode: temperature output

Calculation mode: no moving average or two moving averages

Temperature output resolution: 0.25℃/32.45℉

Number of sensor addresses: 2 (1²C slave address)

Thermistor output temperature range: 0℃~80℃ (32℉~176℉)

Thermistor output resolution: 0.0625℃/32.1125℉

Product size: 38*36*17mm/1.5*1.4*0.7 inches

Product weight: 17 g / 0.6 oz

Packing size: 90*80*20mm/3.5*3.1*0.8 inches

Package weight: 19 g / 0.7 oz

packing list:

1 * AMG8833 thermal imager with housing

Notice:

USB cable not included, thank you for your understanding.

• The module can be powered directly by USB 5V to generate infrared images.
• Using AMG8833 infrared thermal sensor. The resolution is 8
• 8, and the maximum detection distance is 7 meters.
• Can be applied to the inspection of electronic products.
