A-BF Uti260B Infrared Thermal Imager -15~550C Industrial Thermal Imaging Camera Handheld USB Infrared Thermometer 256*192 Pixels
A-BF Uti260B Infrared Thermal Imager -15~550C Industrial Thermal Imaging Camera Handheld USB Infrared Thermometer 256*192 Pixels
256*192 pixels, a-bf, a-bf uti260b, and inspect, handheld usb infrared thermometer, handheld usb thermometer, industrial & scientific, industrial thermal imaging camera, infrared thermal imager, measure
Regular price
$676.44 AUD
Regular price
Sale price
$676.44 AUD
Unit price
per
Taxes included.
Shipping calculated at checkout.
Couldn't load pickup availability
✨Dear friend, welcome to our store, we provide various models of thermal imaging cameras, we will do our best to provide you with the best service!
✨Description:
A-BF RX600/UTi260B Thermal Imaging Camera PCB Industrial Floor Heating Detection Camera Thermal Imaging Camera Learn more about the products click on the RX-600 video: https://youtu.be/l8pSzLqHkbw
UTi260B = RX-600
Technical parameters
●Temperature range: -20°C~550°C (4°F~1022°F)
● Accuracy: ± 2°C/± 2% whichever is greater
● Sensor: Focal length without cooling
● High gain mode: -15°C~150°C, low gain: 150°C~550°C
● Temperature measurement time: ≤ 500ms
● Thermal imaging pixels: 256*192 (49152)
● Pixel size: 12μm

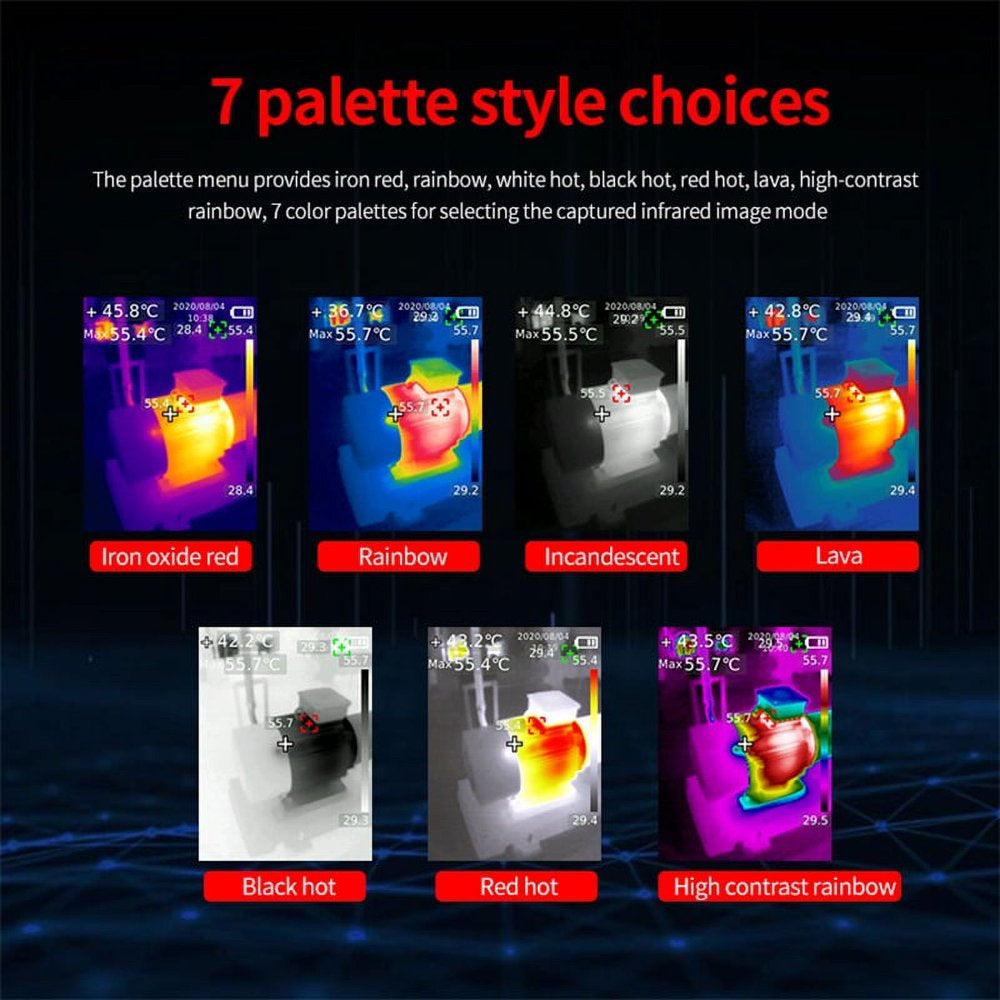

● Clock: White, Black, Red, Silver, Rainbow, High Contrast Rainbow, Red
● Infrared spectrum bandwidth: 8~14μm
● Field of view: 56° (V) * 42.2° (V)
● Ifov: 3.8 mrad
● Thermal image sensitivity: <60mK
● Frame rate: <25Hz
● Temperature measurement display: central point temperature measurement, high temperature tracking and key area temperature (ROI) measurement, by default high temperature is monitored
● Temperature measurement point: In addition to the center point, 3 temperature measurement points can be customized

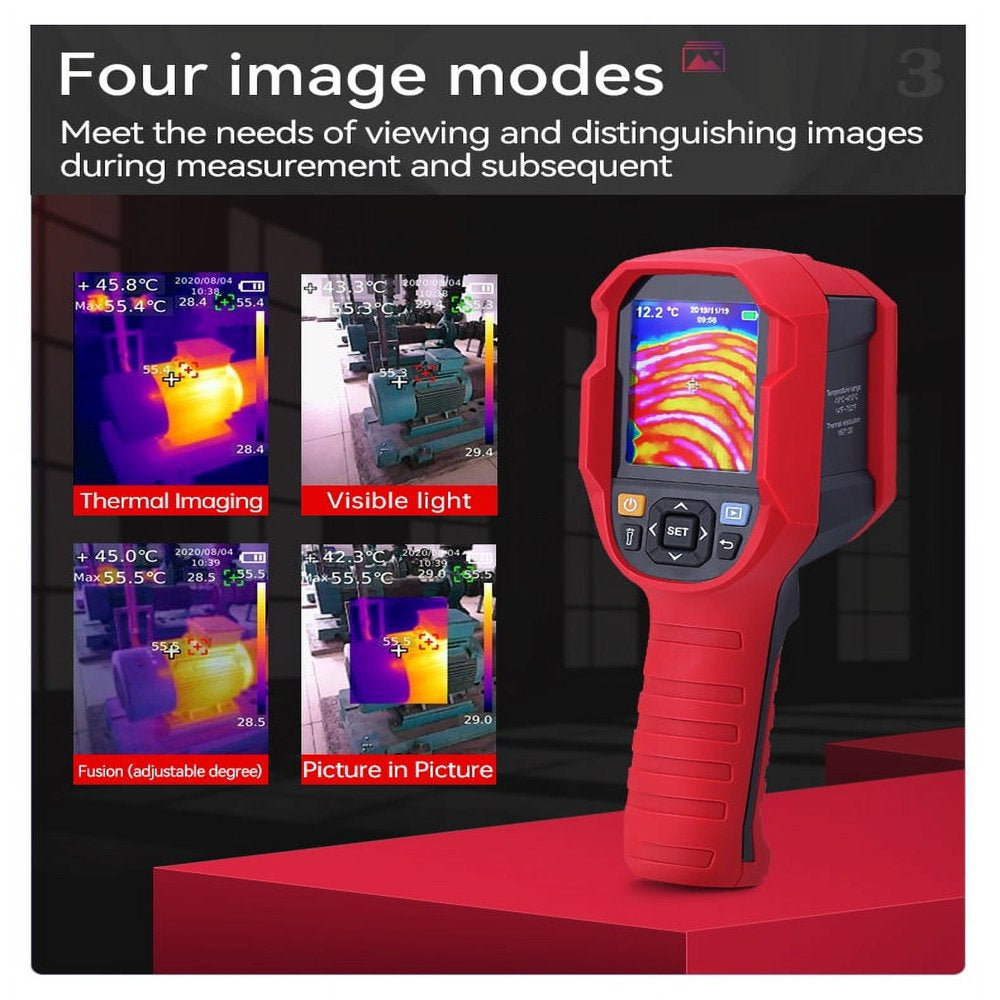

● Image mode: Thermal image, merge, picture in picture, visible lamp
●Visible Lamp Resolution: 640x 480
● Mixed settings: 0% (fully visible lamp), 25%, 50%, 75%, 100% full thermal image)
● Picture format: BMP
● PC analysis software: Yes
● Real-time image transmission: real-time projection of PC software
● Data transmission: USB Type-C
● IP rating: IP65
● Drop test: 2m
● Display screen: 2.8" TFT LCD display
● Display resolution: 320*240
● Battery: Li-ion battery 3.6V 5000 mAh, 26650 single cell
● Auto power off: optional (5 min, 10 min, 30 min) Auto power off by default 30 min
● Usage time: at least 6 hours
● Charging time: no more than 5 hours
● Charging voltage/current: 5V/2A
● Image storage: Micro SD card
● Product size: 236*75.5*86mm
● Accessories: manual, USB Type-C cable, 16G TF card
📌Characteristics:
Origin China
Brand A-BFastiron It's a smart device Eat
Type of power supply Lithium
Display size 2.0-3.9 Inch
Certification Eurotest (CE)
Certification FCC
Certification RoHS
Style Handheld
Test Temperature Range -15~550°C (5°F~1022°F)
Temperature Unit °C/°F Switch
IR Resolution 256*192 Pixels
Visible Light Resolution 640*480 Pixels
SD Card 16GB TF Card
Battery Li-ion 3.6V/5000mAh
Measuring Distance 0.2m-50m(best 1m)
Data Communication Type-C USB
Real-time Image Transmission PC Software Real-time Projection
Display Resolution 320*240 Pixels
Usage Time Not Less Than 6 Hours
Charging Time No More Than 5 Hours
Charging Voltage/Current 5V/2A
IFOV 3.8mrad
Product Size 236*75.5*86mm
Real Time Display UTi85A and UTi260B
Image Analysis Software RX-680
- [Easy to Use]: Ti260B is a high resolution thermal camera which great for home inspections such as heat leak,insulation leaks,plumbing and wiring.Handheld and light weight design makes you easy to operate with one hand
- [infrared Image Resolution]: 320*240 Pixels, 2.0-3.9 inches display screen,visible image resolution: 7 color palettes optional.
- [Temperature Range]:Provides temperature measurements -20～550℃,Temperature accuracy: ± 2 % or ± 2 °C.
- [Rechargeable & LED Light]: This Thermal Camera can be charged by USB port from computer,power adapter and power bank.Built-in LED spotlight you can use as a flashlight and for photo-illumination.
- [Excellent service]: If you have any question please feel free to contact us for services 24hours.
Product Dimensions:
7.87 inches x 7.87 inches x 11.81 inches.
Item Specifications:
| Assembled Product Dimensions (L x W x H) | 7.87 x 11.81 x 7.87 Inches |
