6. Operate temperature : 10℃~50℃
7. Operate humidity: ≤70%
8. Refresh rate : 8HZ
9. No need to calibrate
10. : 55°x35°
11. Display center point ,maximum and minimum temperature
12. Make photo(Can saved 90PCS photos, connect to computer, copy and delete)
13. Rechargeable Battery
14. TFT size : 1.8inch(display resolution:160x128)
15. Product size : 66x46x20mm
16. Power port : USB Type‐C 5V/1A
17. Built-in 4M memory chip, which can store about 90 pictures
Operate description:
1. Charging : Use USB Type‐C line, 5V/1A
2. Open/Close : Press Middle Key Long
3. Make photo: Press Middle Key
4. Review photo: Press Up or Down Key
5. Quit photo: Press Up or Down Key Long
6. Copy photo : connect computer with usb line, computer will get a disk.
Note: can not change photo in disk or put other file into the disk. Before connect computer , pls fully and shutdown.

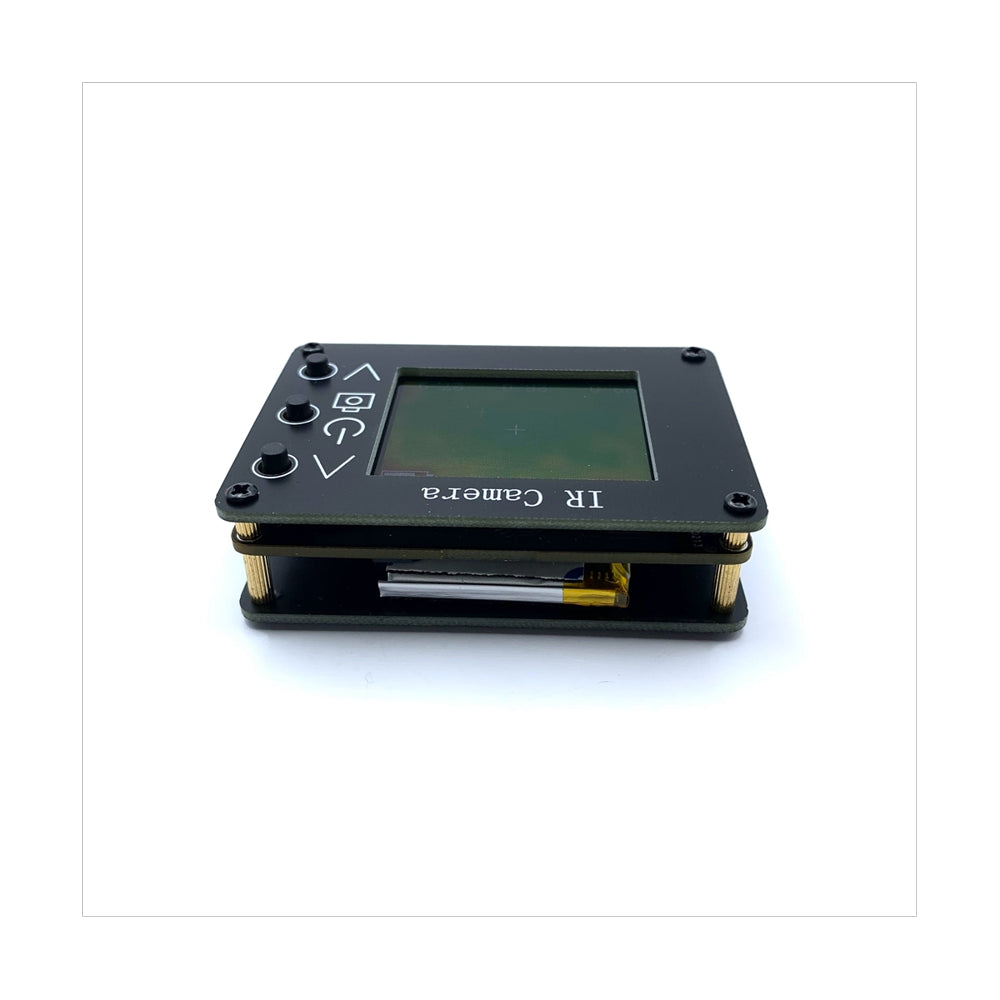

type: Thermal Imager
color:Black
Material:PCB+plastic+metal

Package Contents:
1 x Mini Thermal Imager

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.

• 1. Module: MLX90640_CSB
• 2. Use MLX90640ESF_BAB IR Sensor
• 3. Resolution : 32x24
• 4. Temperature measurement range : ‐40℃~300℃
• 5. Measurement accuracy : +/‐2℃(Central area,0~100℃)
